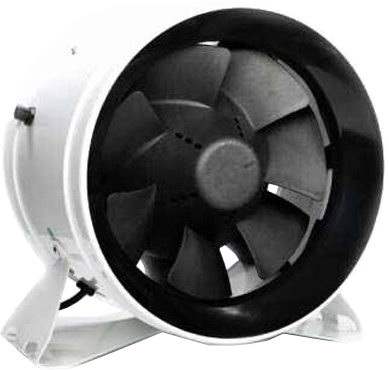

Duct Fans and Silent Mixed Flow fans are designed for applications where efficient venting of high air volumes at high pressures is required. Mixed flow fans provide the performance of a centrifugal fan with the space saving advantages of an axial fan.
Mechatronics EC Power Duct Fans and Mixed Flow Fans deliver more size and power options, higher static pressures and airflows, at lower power consumption than any other duct fan or mixed flow fan available.
Features
Standard Sizing Inlet and outlet conveniently sized to connect with common ducting sizes
Quick Installation Built in 15′ power cord and plug for quick installation
Speed Control Include external speed control options for additional control and power efficiency.
Efficient Power High efficiency and powerful six pole motor EC motor converts AC power for efficient power and performance of a DC fan
Durable Construction Two long life ball bearing design, with aluminum alloy frame and mounting base with UL94V-0 plastic impeller
Approvals ETL approved
Applications
Mechatronics MI series duct fans, and silenced SMI series fans are the ideal solution to environmental control and venting needs in HVAC, industrial, indoor gardening, hydroponic, electronic cooling, and silent venting applications.
Silenced Mix Flow Duct Fans
Silenced mixed flow duct fan models provide quiet performance in noise sensitive applications. Mechatronics Silenced fans offer high airflow and pressure with as much as 20% lower noise. Rotating mounting tabs support quick mounting in hanging ceilings, garages, greenhouses and other HVAC applications.
| Series | Dimensions | Rated Voltage | Frequency | Input Power | Rated Current | Speed | Air Volume | Max Static Pressure (H2O) | Sound Noise | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | V | Hz | W | A | RPM | m3/min | CFM | mm/H2O | in/H2O | dBA | |
| MI4-EC12-DF | 98 x 125 x 150 | 3.90 x 4.90 x 5.90 | 110 | 50/60 | 18 | 0.27 | 5000 | 4.53 | 160 | 33.78 | 1.33 | 56 |
| MI6-EC12-DF | 176 x 150 x 165 | 6.90 x 5.90 x 6.50 | 110 | 50/60 | 40 | 0.55 | 5000 | 9.91 | 350 | 51.05 | 2.01 | 60 |
| MI8-EC12-DF | 224 x 200 x 220 | 8.80 x 7.90 x 8.70 | 110 | 50/60 | 75 | 1.03 | 3800 | 20.10 | 710 | 53.09 | 2.09 | 61 |
| MI10-EC12-DF | 277 x 250 x 210 | 10.90 x 9.80 x 8.30 | 110 | 50/60 | 150 | 1.70 | 3200 | 30.16 | 1065 | 52.07 | 2.05 | 65 |
| SMI6-EC12-DF | 243 dia x 547 | 9.60 dia x 24.50 | 110 | 50/60 | 40 | 0.55 | 5000 | 9.91 | 350 | 51.05 | 2.01 | 50 |
| SMI8-EC12-DF | 307 dia x 699 | 12.10 dia x 27.50 | 110 | 50/60 | 75 | 1.03 | 3800 | 20.10 | 710 | 53.09 | 2.09 | 51 |
