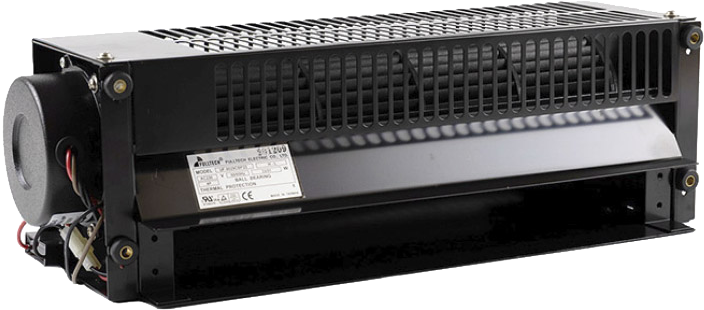

AC cross-flow fans move air by drawing it in from the sides and expelling it evenly out the front and back and are effective for uniform air distribution in compact spaces.
Key Features
Design: Cylindrical or rectangular with a rotor for wide airflow.
Airflow Direction: Moves air perpendicular to the fan’s axis.
Quiet Operation: Low noise levels.
Common Applications
HVAC Systems: For ventilation.
Electronics Cooling: In air conditioners and refrigerators.
Industrial Use: In cooling and drying processes.
| Series | Dimensions | Rated Voltage | Frequency | Input Power | Rated Current | Speed | Air Volume | Max Static Pressure (H2O) | Sound Noise | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | V | Hz | W | A | RPM | m3/min | CFM | mm/H2O | in/H2O | dBA | |
| UF6030 | 402 x 98 x 90 | 15.83 x 3.86 x 3.54 | 115/230 | 50/60 | 35–37 | 0.17–0.33 | 2600–3000 | 5.01–5.52 | 177–195 | 5.08–7.62 | 0.20–0.30 | 50–53 |
| UF9029 | 420 x 150 x 130 | 16.54 x 5.91 x 5.12 | 115/230 | 50/60 | 31–33 | 0.13–0.28 | 1350–1560 | 4.50–5.01 | 159–177 | 2.29–3.30 | 0.09–0.13 | 43–46 |
| UF6036 | 462 x 98 x 90 | 18.19 x 3.86 x 3.54 | 115/230 | 50/60 | 35–37 | 0.17–0.33 | 2500–2800 | 5.52–6.00 | 195–212 | 5.08–7.62 | 0.20–0.30 | 50–53 |
| UF9439 | 510 x 150 x 130 | 20.08 x 5.91 x 5.12 | 115/230 | 50/60 | 43–50 | 0.20–0.40 | 1400–1600 | 7.50–9.00 | 265–318 | 3.56–4.57 | 0.14–0.18 | 48–53 |
| UF9446 | 570 x 150 x 130 | 22.44 x 5.91 x 5.12 | 115/230 | 50/60 | 43–50 | 0.20–0.42 | 1350–1550 | 8.50–10.02 | 300–354 | 3.56–5.08 | 0.14–0.20 | 48–53 |
| UF9060 | 740 x 150 x 130 | 29.13 x 5.91 x 5.12 | 115/230 | 50/60 | 130–160 | 0.55–1.25 | 2100–2150 | 15.01–15.57 | 530–550 | 8.89–10.92 | 0.35–0.43 | 54–55 |
