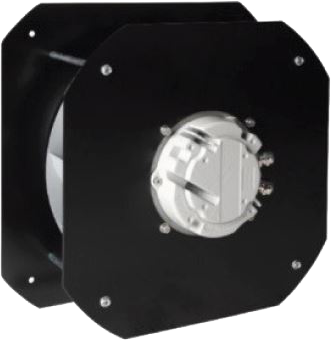

AC motorized impellers combine an impeller with a motor to create reliable and efficient airflow management. They typically draw air into the center and expel it outward, creating high pressure. The airflow direction is primarily radial, moving outward from the center at a right angle to the axis of rotation.
Electronically commutated (EC) fans deliver high airflow performance and require as much as 50% less power than standard AC fans, and are commonly used in applications such as cooling systems, ventilation, and industrial processes.
Features
Integrated Design: The impeller and motor are combined into a single unit for efficient operation.
Efficiency: Provides strong airflow with minimal energy consumption.
Durability: Designed for continuous operation in demanding environments.
Applications
HVAC Systems: Used in heating, ventilation, and air conditioning for air distribution.
Industrial Equipment: Employed in machinery that requires airflow for cooling or drying.
Home Appliances: Found in devices like exhaust fans and blowers.
| Series | Dimensions | Rated Voltage | Frequency | Input Power | Rated Current | Speed | Air Volume | Max Static Pressure (H2O) | Sound Noise | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | V | Hz | W | A | RPM | m3/min | CFM | mm/H2O | in/H2O | dBA | |
| LPAI250 | 300 x 300 x 160.5 | 11.81 x 11.81 x 6.32 | 230 | 50/60 | 133 | 0.99 | 2700 | 25.00 | 885 | – | – | 70 |
| LPAI315 | 440 x 440 x 240 | 17.32 x 17.32 x 9.45 | 230 | 50/60 | 353 | 1.54 | 2250 | 45.00 | 1593 | – | – | 70 |
| LPAI355 | 500 x 500 x 330 | 19.69 x 19.69 x 12.99 | 230 | 50/60 | 294 | 1.34 | 1800 | 52.50 | 1853 | – | – | 70 |
| LPAI400 | 500 x 500 x 340 | 19.69 x 19.69 x 13.39 | 400 | 50/60 | 378 | 0.83 | 1500 | 69.00 | 2440 | – | – | 73 |
| LPAI500 | 630 x 630 x 389 | 24.80 x 24.80 x 15.31 | 400 | 50/60 | 1014 | 1.84 | 1400 | 146.00 | 5148 | – | – | 87 |
| LPAI560 | 630 x 630 x 432 | 24.80 x 24.80 x 17.01 | 400 | 50/60 | 1783 | 2.93 | 1400 | 203.00 | 7170 | – | – | 78 |
| LPAI630 | 800 x 800 x 469.5 | 31.50 x 31.50 x 18.48 | 400 | 50/60 | 1936 | 3.22 | 1200 | 270.00 | 9535 | – | – | 80 |
