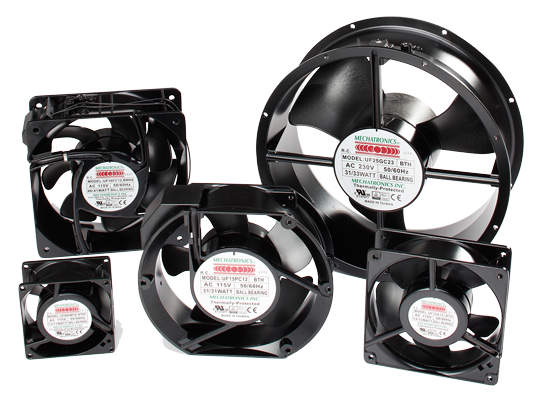

AC Axial Fans

AC Axial Fans

Mechatronics extensive AC Axial fan offering provides many options to meet your thermal management requirements including various voltage, temperature and environmental protections like conformal coating or IP55 encapsulation. Custom designs available upon request.

An AC axial fan moves air on a linear path in the same direction as the air intake. Axial fans are commonly used in a wide variety of applications due to their high airflow and easy integration.

Key Features

Design: Tubeaxial structure focuses airflow to maximize output.

Airflow Direction: Moves air perpendicular to the fan’s axis.

Quiet Operation: Generally low noise, suitable for sensitive environments.

Common Applications

HVAC Systems: Ventilation, Air Distribution, Controls

Electronics Cooling: Appliances, Power Distribution, Food Equipment, Refrigeration.

Industrial Use: Automation, Industrial Controls, Material Handling and Processing.

These fans are favored for their simplicity, efficiency, and ability to handle high airflow rates.

Series Dimensions Rated Voltage Frequency Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
mm in V Hz W A RPM m3/min CFM mm/H2O in/H2O dBA
UF60D 60 x 60 x 30 2.36 x 2.36 x 1.18 115/230 50/60 4–5 0.02–0.04 2400–3100 0.23–0.29 8.1–10.2 1.78–2.79 0.07–0.11 27–28
UF80B 80 x 80 x 25 3.15 x 3.15 x 0.98 115/230 50/60 11–16 0.06–0.15 1900–3100 0.42–0.68 15–24 2.03–5.59 0.08–0.22 28–35
UF80AM 80 x 80 x 38 3.15 x 3.15 x 1.50 115/230 50/60 11–13 0.13–0.16 2750–3250 0.82–0.96 29–34 4.83–6.60 0.19–0.26 35–40
UF80A 80 x 80 x 38 3.15 x 3.15 x 1.50 115/230 50/60 9–14 0.05–0.14 1900–3000 0.57–0.85 20–30 2.54–5.59 0.10–0.22 28–36
UF92B 92 x 92 x 25 3.62 x 3.62 x 0.98 115/230 50/60 11–16 0.06–0.15 1800–3000 0.57–1.13 20–40 2.54–6.60 0.10–0.26 28–36
UF92AM 92 x 92 x 38 3.62 x 3.62 x 1.50 115/230 50/60 11–12 0.06–0.13 2700–3200 1.25–1.44 44–51 6.10–7.62 0.24–0.30 37–42
UF92A 92 x 92 x 38 3.62 x 3.62 x 1.50 115/230 50/60 12–16 0.09–0.22 2800–3300 1.08–1.30 38–46 5.59–8.13 0.22–0.32 34–38
UF12B 120 x 120 x 25 4.69 x 4.69 x 0.98 115/230 50/60 11–16 0.06–0.15 1600–2900 1.19–2.12 42–75 1.78–6.10 0.07–0.24 31–42
UX12AC 120 x 120 x 38 4.69 x 4.69 x 1.50 115/230 50/60 21–22 0.10–0.18 2800–3300 3.09–3.68 109–130 9.65–12.70 0.38–0.50 43–47
UF12AR 120 x 120 x 38 4.69 x 4.69 x 1.50 115/230 50/60 11–17 0.07–0.20 2100–3100 1.90–2.80 67–99 3.81–8.38 0.15–0.33 36–47
UF12AM 120 x 120 x 38 4.69 x 4.69 x 1.50 115/230 50/60 13–17 0.09–0.17 2700–3100 2.52–2.92 89–103 6.10–6.60 0.24–0.26 42–46
UF12AMR 120 x 120 x 38 4.72 x 4.72 x 1.50 115/230 50/60 16–20 0.11–0.22 2600–2950 2.69–3.00 95–106 6.10–6.35 0.24–0.25 49–51
UF12A 120 x 120 x 38 4.69 x 4.69 x 1.50 115/230 50/60 6–17 0.03–0.20 1600–3100 1.50–3.00 53–106 2.03–8.13 0.08–0.32 35–46
UF13A 127 x 127 x 38 5.00 x 5.00 x 1.50 115/230 50/60 12–17 0.09–0.20 2700–3000 2.92–3.40 103–120 3.56–7.37 0.14–0.29 46–50
UF16FC-4 160 x 160 x 62 6.30 x 6.30 x 2.44 115/230 50/60 41–46 0.17–0.43 2850–3400 6.29–7.50 222–265 13.46–18.29 0.53–0.72 52–56
UF16FC 160 x 160 x 62 6.30 x 6.30 x 2.44 115/230 50/60 41–46 0.17–0.43 2850–3400 6.29–7.50 222–265 13.46–18.29 0.53–0.72 52–56
UF15AC 172 x 150 x 38 6.77 x 5.91 x 1.50 115/230 50/60 26–29 0.07–0.28 1400–3400 2.41–6.00 85–212 4.57–19.05 0.18–0.75 38–58
UF15PC 172 x 150 x 51 6.77 x 5.91 x 2.00 115/230 50/60 29–31 0.07–0.26 1400–3400 2.49–6.40 88–226 3.81–20.07 0.15–0.79 31–58
UF15KM 172 x 150 x 55 6.77 x 5.91 x 2.17 115/230 50/60 42 0.23–0.52 2800–3250 5.52–6.51 195–230 13.97–16.00 0.55–0.63 49–53
UF15KMR 172 x 150 x 55 6.77 x 5.91 x 2.17 115/230 50/60 45 0.25–0.54 2750–3150 6.37–7.22 225–255 12.70 0.50 58–61
UF15KC 172 x 150 x 55 6.77 x 5.91 x 2.17 115/230 50/60 38–39 0.17–0.38 2900–3400 6.80–8.30 240–293 17.02–22.86 0.67–0.90 55–60
UF15KCR 172 x 150 x 55 6.77 x 5.91 x 2.17 115/230 50/60 26–31 0.11–0.25 2850–3400 5.80–6.82 205–241 13.97–18.54 0.55–0.73 61–66
UF17PC 172 dia x 51 6.77 dia x 2.00 115/230 50/60 29–31 0.07–0.26 1400–3400 2.49–6.40 88–226 5.59–96.52 0.22–3.80 31–55
UF18JC-4 180 x 180 x 90 7.09 x 7.09 x 3.54 115/230 50/60 72–78 0.31–0.88 2850–3400 11.04–13.03 390–460 19.81–26.92 0.78–1.06 54–59
UF20TC 205 x 205 x 72 8.09 x 8.09 x 2.84 115/230 50/60 92–126 0.42–1.10 2850–3350 17.27–20.10 610–710 29.21–36.83 1.15–1.45 68–72
UF20JC 205 x 205 x 90 8.07 x 8.07 x 3.54 115/230 50/60 70–98 0.32–0.90 2800–3200 16.99–19.26 600–680 19.56–515.62 0.77–20.30 67–71
UF200BMB-H2 225 x 225 x 80 8.86 x 8.86 x 3.15 115/230 50/60 74–100 0.34–0.88 2600–3000 15.29–17.70 540–625 20.32–20.57 0.80–0.81 59–61
UF25GCM 254 dia x 89 10.00 dia x 3.50 115/230 50/60 45–80 0.20–0.70 2500–3800 17.80–23.80 627–841 12.40–25.30 0.49–1.00 64–70
UF25GC 254 dia x 89 10.00 dia x 3.50 115/230 50/60 31–98 0.14–0.88 1400–3200 13.03–22.99 460–812 8.13–22.86 0.32–0.90 52–65
UF25HC 254 dia x 107 10.00 dia x 4.21 115/230 50/60 95–125 0.42–1.07 2600–2750 22.09–24.07 780–850 17.27–19.05 0.68–0.75 63–65
UF250BMB-H1 280 x 280 x 80 11.00 dia x 3.15 115/230 50/60 112–158 0.59–1.50 2550–2700 30.87–32.00 1090–1130 16.51–19.81 0.65–0.78 68–70
UF300BNA 398 dia x 98.3 15.67 dia x 3.87 115/230 50/60 150–200 0.90–2.40 1435–1615 0.82–0.88 29–31 27.94–30.48 1.10–1.20 75–78
