DC Motorized Impellers

DC Motorized Impellers

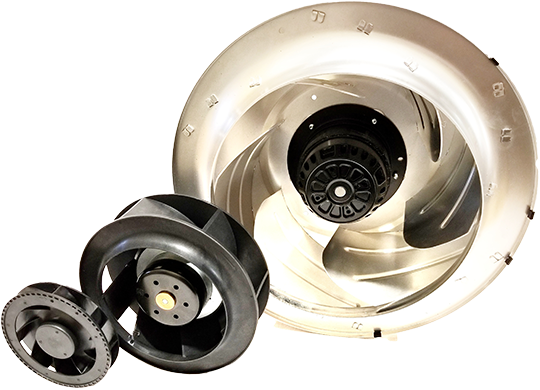

Mechatronics Backward Curved DC Motorized Impellers offer exceptional airflow and pressure performance with a variety of voltage, speed control, and alarm output options.

DC motorized impellers combine an impeller with a motor to create reliable and efficient airflow management. They typically feature rotating blades that draw air into the center and expel it outward, creating high pressure. The airflow direction is primarily radial, moving outward from the center at a right angle to the axis of rotation.

Features

Static Pressure Very high static pressure performance in standard models
High Performance and Power Efficiency vs. AC versions
Two Ball Bearing system standard on all models
Alarm Output options including tachometer or locked rotor alarm
Speed Control options include pulse width modulation (PWM speed control) input.
Environmental Protection options including encapsulation up to IP68 available

Applications

HVAC Systems: Heat Exchangers, Humidifiers / Dehumidifiers, HVAC Controls, HEPA Filter Assemblies
Industrial Equipment: Exhaust / Air Movers, Fume Exhaust, Containment / Abatement, Air Scrubbers
Home Appliances: Found in devices like exhaust fans and blowers, refrigeration systems

These fans are favored for their simplicity, efficiency, and ability to handle high airflow rates.

Series Dimensions Rated Voltage Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
mm in V W A RPM m3/min CFM mm/H2O in/H2O dBA
MSI1225 120 dia x 25 4.72 dia x 1.02 12, 24 10.56–11.52 0.48–0.88 3300 1.64 58 14.48 0.57 51
MSI1380 133 dia x 80 5.24 dia x 3.17 24, 48 120 2.50–5.00 4500 5.01 177 45.21 1.78 66
B1535 150 x 150 x 35 5.91 x 5.91 x 1.38 12, 24, 48 8.04–28.8 0.20–1.98 3000–4200 3.20–4.20 111–148 25.50–50.00 1.00–1.97 54–63
MSI1769 175 dia x 69 6.89 dia x 2.72 24, 48 110.4 2.30–4.60 4000 9.77 345 45.72 1.80 72
MSI1967 190 dia x 67 7.48 dia x 2.64 24, 48 112.8–120 2.50–4.70 3000 10.14 358 46.48 1.83 71
MSI2577 250 dia x 77.3 9.84 dia x 3.04 24, 48 172.8–187.2 3.90–7.20 2800 20.27 716 85.60 3.37 76
MSI3116 315 dia x 161 12.40 dia x 6.34 48 422.4 8.80 2100 47.43 1675 80.01 3.15 76
