Mechatronics LPAI250 Series 300mm x 300mm x 160.5mm EC Large Motorized Impeller

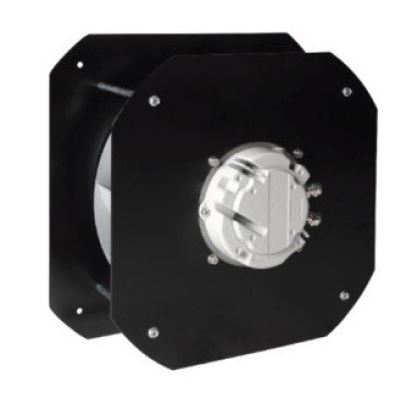

LPAI250_photo
Check Stock Request Quote

Specifications

Series LPAI250
Product Type EC Large Motorized Impellers
Dimensions 300mm x 300mm x 160.5mm
11.81in x 11.81in x 6.32in
Rated Voltage 230VAC
Operating Frequency 50/60Hz
Impeller Diameter 250 mm
Phase Single-phase
Frame Construction Die-cast Aluminum Motor Base
Impeller Construction Aluminum
Motor Type Brushless EC
Airflow Radial
Motor Protection Locked rotor protection
Storage Temp -35°C ~+70°C
Operating Temp -25°C ~+60°C

Available Options

Bearing Options Ball bearing
Connection Options Lead wires
Protection Options IP54
Additional Options +10VDC output, 0-10VDC/PWM speed control input, Current speed control, Tachometer output

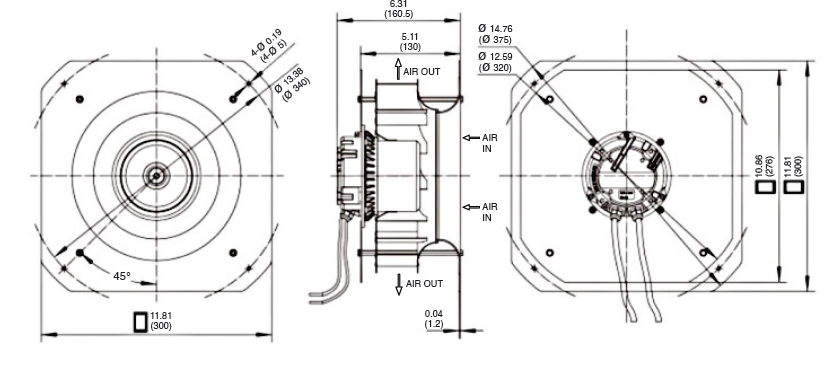

LPAI250_drawing
0.50 1.00 1.50 2.00 2.50 0 200 400 600 800 1000 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) H

Models

Model Number Rated Voltage Frequency Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A RPM m3/min CFM mm/H2O in/H2O dBA
LPAI250AMA23-H1D8A-B1+7 230VAC 50/60 133 0.99 2,700 25.00 885 – – 70
