Mechatronics SMI8-EC12-DF Series 307mm dia x 699mm EC Mixflow Duct Fan

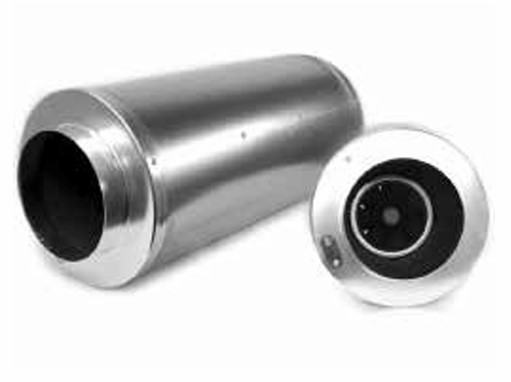

SMI8-EC12-DF_photo
Check Stock Request Quote

Specifications

Series SMI8-EC12-DF
Product Type EC Mixflow Duct Fans
Dimensions 307mm dia x 699mm
12.10in dia x 27.50in
Rated Voltage 110VAC
Operating Frequency 50/60Hz
Fan Size (inch) 8
Duct Size (inch) 8
Phase Single-phase
Weight 7.50 kg
Frame Construction Aluminum
Impeller Construction UL94V-0 Plastic
Motor Type Brushless EC
Airflow Axial
Motor Protection Locked rotor protection
Operating Temp -10°C ~+50°C

Available Options

Bearing Options Ball bearing
Connection Options Cable with wall plug
Protection Options IP54
Additional Options Speed Controller, Noise Reducing Insulation

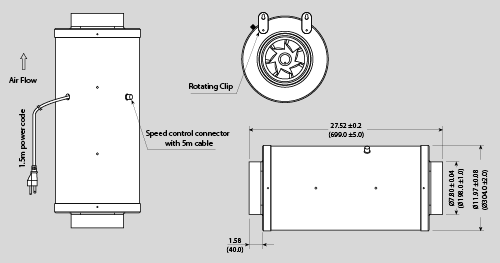

SMI8-EC12-DF_drawing
0.5 1.0 1.5 2.0 2.5 0 200 400 600 800 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) SMI8

Models

Model Number Rated Voltage Frequency Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A RPM m3/min CFM mm/H2O in/H2O dBA
SMI8-EC12-DF 110VAC 50/60 75 1.03 3,800 20.10 710 53.09 2.09 51
