Axial fan move air along the axis of the blades, which are typically mounted on a rotor. Electronically commutated (EC) fans deliver high airflow performance and require as much as 50% less power than standard AC fans, and are commonly used in applications such as cooling systems, ventilation, and industrial processes.
Key Features:
Design: Cylindrical or rectangular structure with a rotor for wide airflow.
Airflow Direction: Moves air perpendicular to the fan’s axis.
Quiet Operation: Generally low noise, suitable for sensitive environments.
Common Applications:
HVAC Systems: For ventilation and air distribution.
Electronics Cooling: Found in appliances like air conditioners and refrigerators.
Industrial Use: In cooling and drying processes.
These fans are favored for their simplicity, efficiency, and ability to handle high airflow rates.
| Series | Dimensions | Rated Voltage | Frequency | Input Power | Rated Current | Speed | Air Volume | Max Static Pressure (H2O) | Sound Noise | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | V | Hz | W | A | RPM | m3/min | CFM | mm/H2O | in/H2O | dBA | |
| LPA300 | 360 dia x 126.5 | 14.17 dia x 4.98 | 230 | 50/60 | 126 | 0.87 | 2100 | 45.31 | 1600 | – | – | 65 |

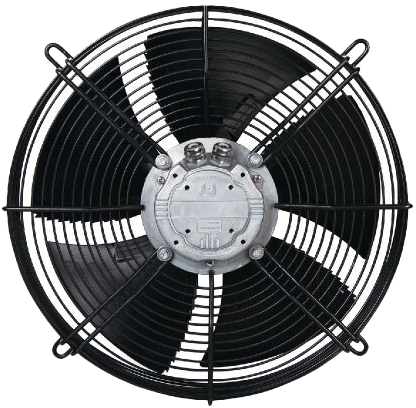

| LPA350 | 422 dia x 118 | 16.61 dia x 4.65 | 230 | 50/60 | 139 | 1.04 | 1700 | 55.22 | 1950 | – | – | 62 |
| LPA400 | 470 dia x 125 | 18.50 dia x 4.92 | 230 | 50/60 | 273 | 1.19 | 1600 | 79.29 | 2800 | – | – | 66 |
| LPA450 | 522 dia x 125 | 20.55 dia x 4.92 | 230 | 50/60 | 332 | 1.45 | 1500 | 100.52 | 3550 | – | – | 67 |
| LPA500 | 655 x 655 x 214 | 25.79 x 25.79 x 8.43 | 400 | 50/60 | 488 | 0.93 | 1750 | 141.58 | 5000 | – | – | 72 |
| LPA630 | 805 x 805 x 217 | 31.69 x 31.69 x 8.54 | 400 | 50/60 | 887 | 1.57 | 1200 | 219.46 | 7750 | – | – | 70 |
| LPA710 | 850 x 850 x 256 | 33.46 x 33.46 x 10.08 | 400 | 50/60 | 694 | 1.19 | 1200 | 249.19 | 8800 | – | – | 69 |
| LPA800 | 970 x 970 x 280 | 38.19 x 38.19 x 11.02 | 400 | 50/60 | 607 | 1.11 | 900 | 263.35 | 9300 | – | – | 70 |
| LPA900 | 1010 x 1010 x 285 | 39.76 x 39.76 x 11.22 | 400 | 50/60 | 1645 | 2.79 | 940 | 516.78 | 18250 | – | – | 76 |
