Mechatronics MI4-EC12-DF Series 98mm x 125mm x 150mm EC Mixflow Duct Fan

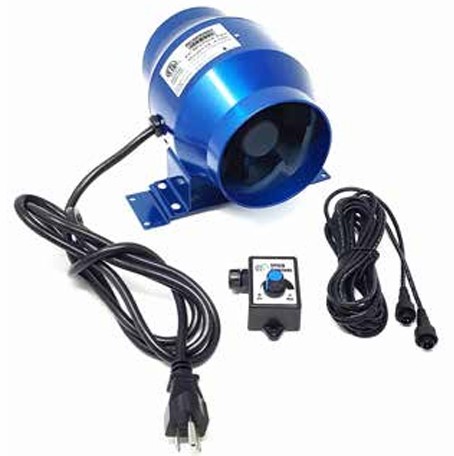

MI4-EC12-DF_photo
Check Stock Request Quote

Specifications

Series MI4-EC12-DF
Product Type EC Mixflow Duct Fans
Dimensions 98mm x 125mm x 150mm
3.90in x 4.90in x 5.90in
Rated Voltage 110VAC
Operating Frequency 50/60Hz
Fan Size (inch) 5
Duct Size (inch) 4
Phase Single-phase
Weight 1.20 kg
Frame Construction Aluminum
Impeller Construction UL94V-0 Plastic
Motor Type Brushless EC
Airflow Axial
Motor Protection Locked rotor protection
Operating Temp -10°C ~+50°C

Available Options

Bearing Options Ball bearing
Connection Options Cable with wall plug
Protection Options IP54
Additional Options Speed controller

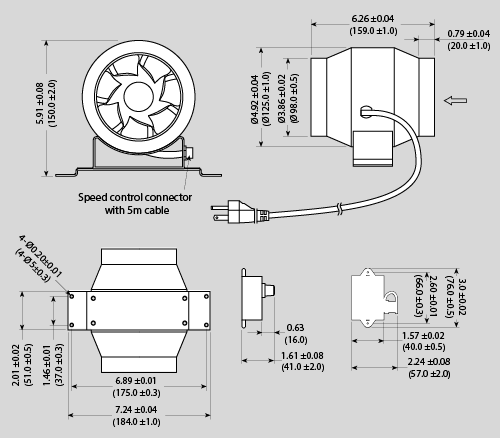

MI4-EC12-DF_drawing
0.4 0.8 1.2 1.6 0 50 100 150 200 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) MI4

Models

Model Number Rated Voltage Frequency Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A RPM m3/min CFM mm/H2O in/H2O dBA
MI4-EC12-DF 110VAC 50/60 18 0.27 5,000 4.53 160 33.78 1.33 56
