Mechatronics MXF30290H Series 338mm x 50mm x 48mm DC Cross Flow Fan

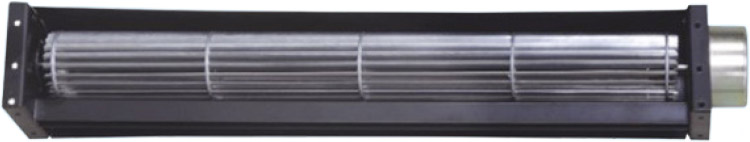

MXF30290H_photo
Check Stock Request Quote

Specifications

Series MXF30290H
Product Type DC Cross Flow Fans
Dimensions 338mm x 50mm x 48mm
13.31in x 2.00in x 1.91in
Rated Voltage 12/24VDC
Weight 0.30 kg
Frame Construction Steel
Impeller Construction Aluminum
Motor Type Brushless DC
Airflow Tangential
Motor Protection Reverse polarity protection, Locked rotor protection
Storage Temp -40°C ~+70°C
Operating Temp -20°C ~+70°C
Insulation Class Class A

Available Options

Bearing Options Ball bearing
Connection Options Lead wires
Protection Options Conformal coating
Additional Options Tachometer Output, PWM Speed Control

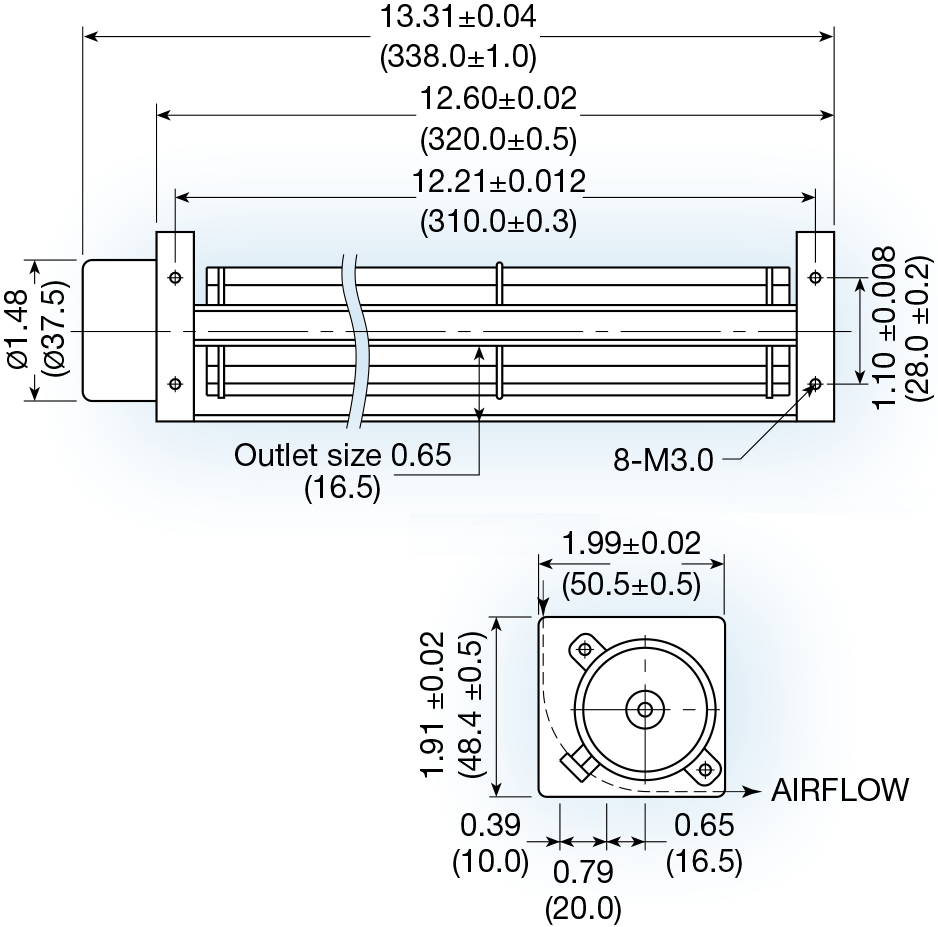

MXF30290H_drawing
0 30 60 0.04 0.02 0.06 0.08 0.10 20 10 40 50 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) H

Models

Model Number Rated Voltage Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V W A RPM m3/min CFM mm/H2O in/H2O dBA
MXF30290H12B-R 12VDC 4.08 0.34 2,700 1.50 52.9 2.03 0.08 36
MXF30290H24B-R 24VDC 3.12 0.13 2,700 1.50 52.9 2.03 0.08 36
