Mechatronics MM1865H48 180mm x 180mm x 65mm DC Axial Fan

MM1865_photo
Check Stock Request Quote

Specifications

Model Number MM1865H48
Series MM1865
Product Type DC Axial Fans
Dimensions 180mm x 180mm x 65mm
7.09in x 7.09in x 2.56in
Rated Voltage 48VDC
Weight 1.55 kg
Frame Construction Magnesium alloy
Impeller Construction Magnesium alloy
Motor Type Brushless DC
Airflow Air exhaust over struts
Motor Protection Thermal protection
Storage Temp -40°C ~+70°C
Operating Temp -10°C ~+70°C
Insulation Class Class A

Available Options

Bearing Options Ball bearing
Connection Options Lead wires, 0.110" Terminal tabs
Additional Options Tachometer Output, Locked Rotor Alarm, PWM Speed Control

Accessories

Metal Fan Guards MG-18 180mm (7.09") Square Metal Fan Guards

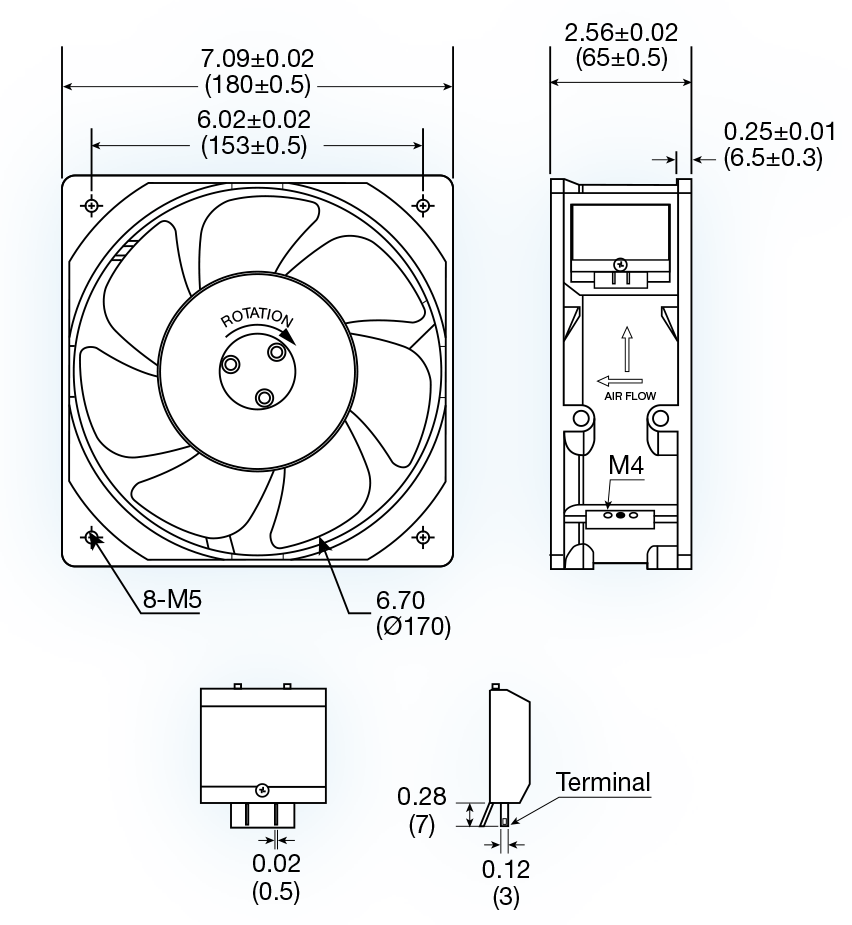

MM1865_drawing
0.2 0.4 0.6 0.8 1.0 1.2 1.4 0 100 200 300 400 500 600 700 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) M H

Models

Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
W A RPM m3/min CFM mm/H2O in/H2O dBA
81.6 1.70 4,000 16.00 580 30.48 1.20 65
