Mechatronics SC162 Series 172mm (6.77") Frame Plastic Fan Guards & Filter
Specifications (Accessories)
Series
SC162
Product Type
Plastic Fan Guards & Filters
Fits Fan Size
172mm (6.77") Frame
Plastic Flamability
UL94V-0
Media Flamability
UL94HF-1
Models

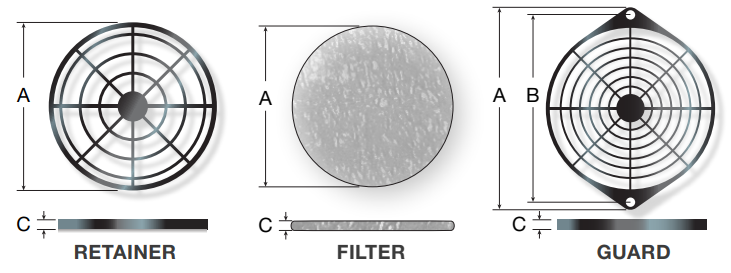

| Model Number | Description | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|
| SC162-P15/45 | Retainer, Filter, Guard 30 PPI | 179.3mm (7.06") | 162mm (6.38") | 7.9mm (0.31") |
| SC162-P15/60 | Retainer, Filter, Guard 45 PPI | 179.3mm (7.06") | 162mm (6.38") | 7.9mm (0.31") |
| SC162-P10 | Plastic Guard | 179.3mm (7.06") | 162mm (6.38") | 7.9mm (0.31") |
| SC162-P05 | Plastic Retainer | 151.9mm (5.98") | – | 4.6mm (0.18") |
| SC162-M/45 | Filter Media - 45 PPI | 150.6mm (5.93") | – | 3mm (0.12") |
| SC162-M/60 | Filter Media - 60 PPI | 150.6mm (5.93") | – | 3mm (0.12") |
