Mechatronics 09362 Series 92mm (3.62") Square Plastic Fan Guards & Filter
Specifications (Accessories)
Series
09362
Product Type
Plastic Fan Guards & Filters
Fits Fan Size
92mm (3.62") Square
Plastic Flamability
UL94V-0
Media Flamability
UL94HF-1
Models

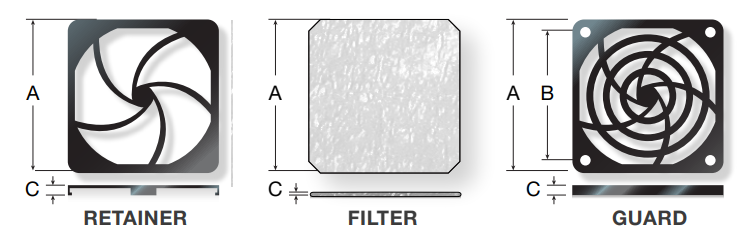

| Model Number | Description | Dimension A | Dimension B | Dimension C |
|---|---|---|---|---|
| 09362-F/30 | Retainer, Filter, Guard 30 PPI | 95.8mm (3.77") | 82.6mm (3.25") | 10.2mm (0.4") |
| 09362-F/45 | Retainer, Filter, Guard 45 PPI | 95.8mm (3.77") | 82.6mm (3.25") | 10.2mm (0.4") |
| 09362-F/60 | Retainer, Filter, Guard 60 PPI | 95.8mm (3.77") | 82.6mm (3.25") | 10.2mm (0.4") |
| 09362-F/100 | Retainer, Filter, Guard 100 PPI | 95.8mm (3.77") | 82.6mm (3.25") | 10.2mm (0.4") |
| 09362-G | Plastic Guard | 92mm (3.62") | 82.6mm (3.25") | 7.1mm (0.28") |
| 09362-R | Plastic Retainer | 95.8mm (3.77") | – | 10mm (0.39") |
| 09362-M/30 | Filter Media - 30 PPI | 90.2mm (3.55") | – | 3.3mm (0.13") |
| 09362-M/45 | Filter Media - 45 PPI | 90.2mm (3.55") | – | 3.3mm (0.13") |
| 09362-M/60 | Filter Media - 60 PPI | 90.2mm (3.55") | – | 3.3mm (0.13") |
| 09362-M/100 | Filter Media - 100 PPI | 90.2mm (3.55") | – | 3.3mm (0.13") |
