Mechatronics UF190APA-F Series 235mm dia x 87mm AC Motorized Impeller

UF190APA-F_photo
Check Stock Request Quote

Specifications

Series UF190APA-F
Product Type AC Motorized Impellers
Dimensions 235mm dia x 87mm
9.25in dia x 3.43in
Rated Voltage 115/230VAC
Operating Frequency 50/60Hz
Phase Single-phase
Weight 1.50 kg
Frame Construction Die-cast Aluminum Mounting Ring
Impeller Construction UL94V-0 Nylon Impeller
Motor Type Permanent split capacitor
Airflow Radial
Motor Protection Thermal protection
Storage Temp -40°C ~+50°C
Operating Temp -40°C ~+50°C
Insulation Class Class B
Special Features Integrated inlet ring mounting plate

Available Options

Bearing Options Ball bearing
Connection Options Lead wires
Protection Options Conformal coating
Additional Options Tachometer Output

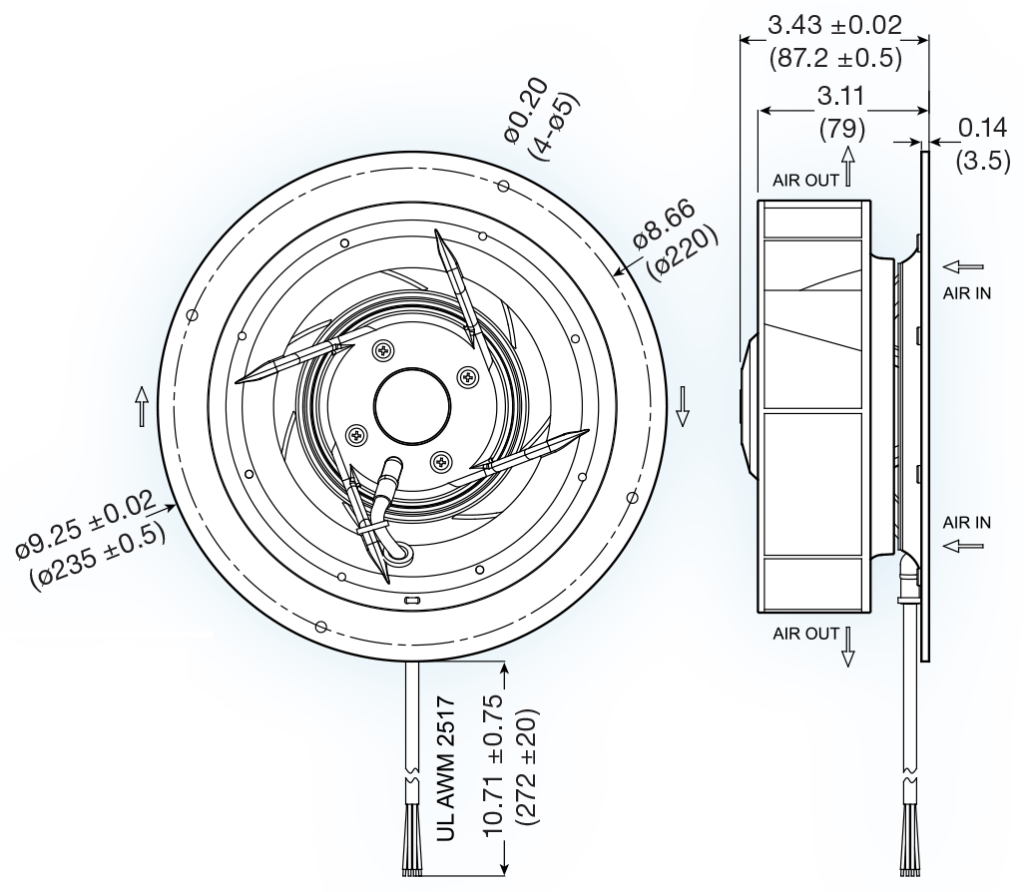

UF190APA-F_drawing
0 25 50 75 100 125 150 175 200 225 250 0.25 0.50 0.75 1.00 1.25 1.50 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) 60 H 50

Models

Model Number Rated Voltage Frequency Input Power Rated Current Locked Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A A RPM m3/min CFM mm/H2O in/H2O dBA
UF190APA12-H2C2F 115VAC 50 55 0.45 0.92 2,500 6.51 230 27.94 1.10 60
60 65 0.54 0.91 2,700 6.99 247 38.10 1.50 63
UF190APA23-H2C2F 230VAC 50 57 0.23 0.43 2,500 6.51 230 27.94 1.10 60
60 72 0.30 0.45 2,700 6.99 247 38.10 1.50 63
