Mechatronics UF60D Series 60mm x 60mm x 30mm AC Axial Fan

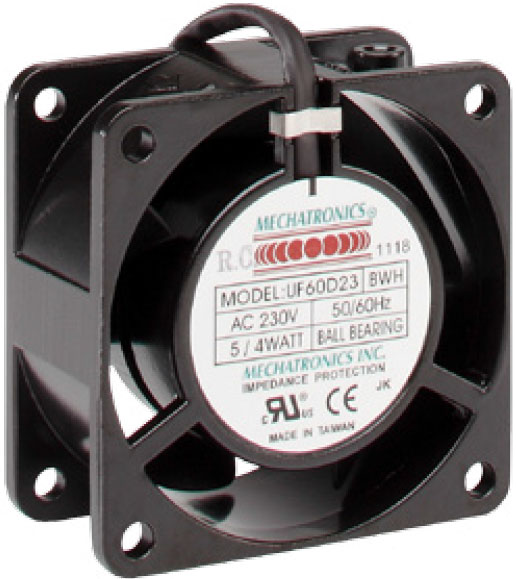

UF60D_photo
Check Stock Request Quote

Specifications

Series UF60D
Product Type AC Axial Fans
Dimensions 60mm x 60mm x 30mm
2.36in x 2.36in x 1.18in
Rated Voltage 115/230VAC
Operating Frequency 50/60Hz
Phase Single-phase
Weight 0.14 kg
Frame Construction Die-cast Aluminum
Impeller Construction UL94V-0 PBT Plastic
Motor Type Shaded pole
Airflow Air exhaust over struts
Motor Protection Impedance protection
Storage Temp -40°C ~+70°C
Operating Temp -40°C ~+70°C
Insulation Class Class B

Available Options

Bearing Options Ball bearing, Sleeve bearing
Connection Options Lead wires
Protection Options Conformal coating

Accessories

Plastic Fan Guards & Filters 09251 60mm (2.36") Square Plastic Fan Guards & Filters
Metal Fan Guards SGR-24 60mm (2.36") Square Metal Fan Guards

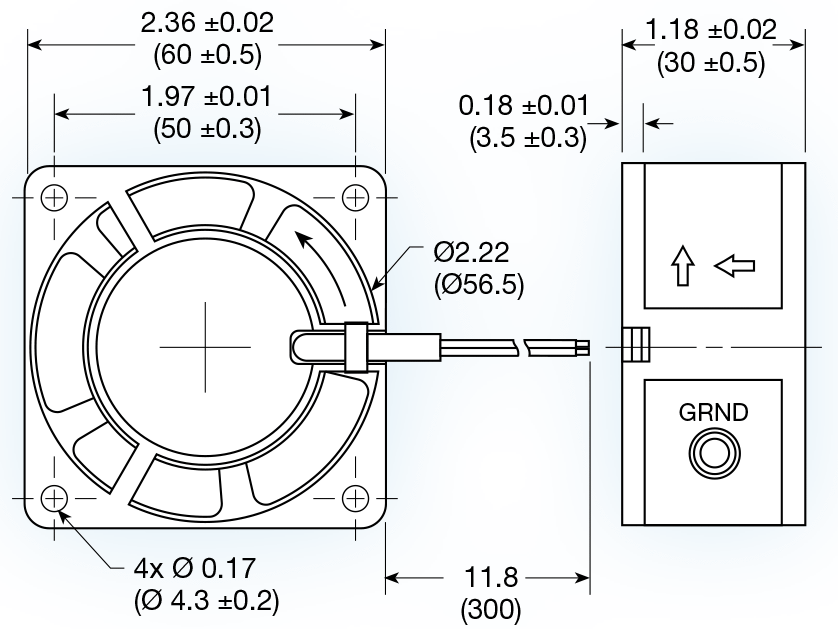

UF60D_drawing
0.03 0.06 0.09 0.12 3 6 9 12 0 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) 60 H 50

Models

Model Number Rated Voltage Frequency Input Power Rated Current Locked Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A A RPM m3/min CFM mm/H2O in/H2O dBA
UF60D12-H 115VAC 50 5 0.04 0.042 2,400 0.23 8.1 1.78 0.07 27
60 4 0.04 0.04 3,100 0.29 10.2 2.79 0.11 28
UF60D23-H 230VAC 50 5 0.04 0.022 2,400 0.23 8.1 1.78 0.07 27
60 4 0.02 0.02 3,100 0.29 10.2 2.79 0.11 28
