Mechatronics MH2060 Series 200mm x 200mm x 60mm DC Axial Fan

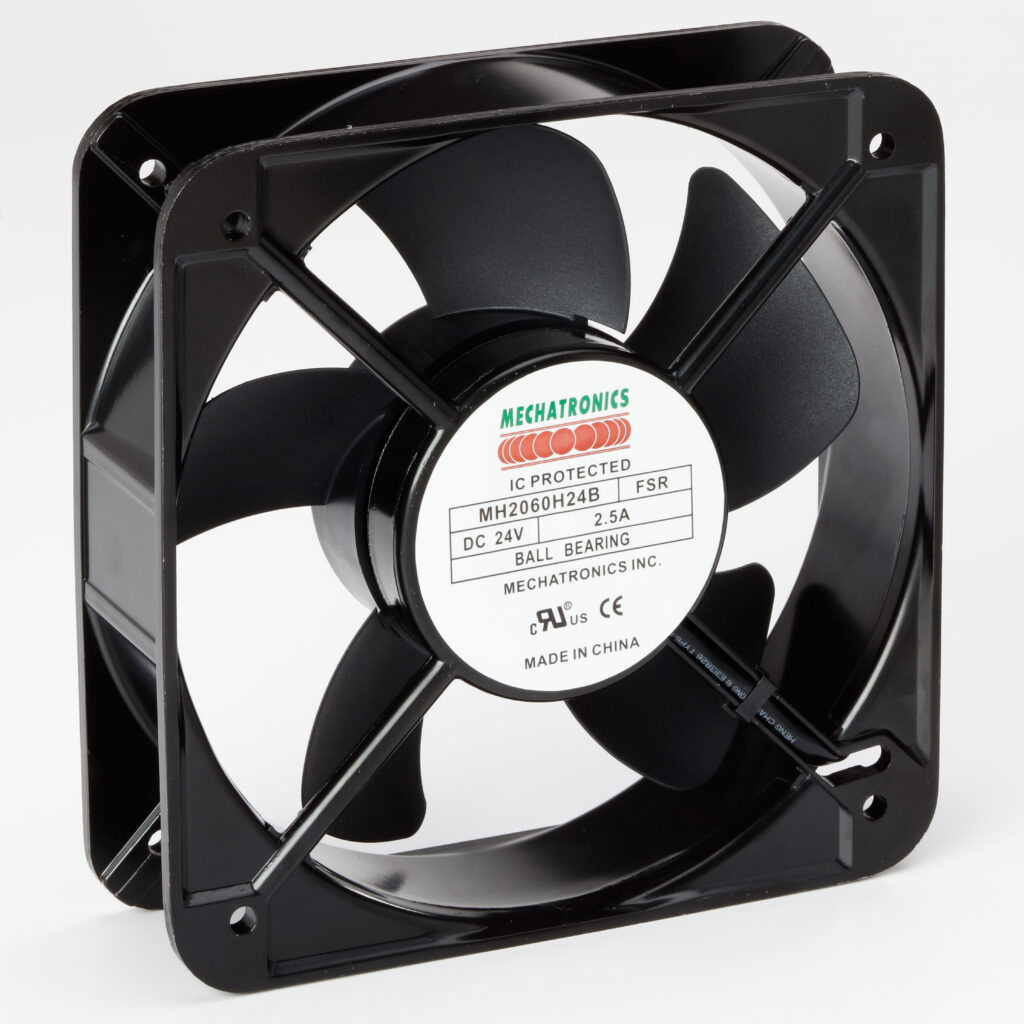

MH2060_photo
Check Stock Request Quote

Specifications

Series MH2060
Product Type DC Axial Fans
Dimensions 200mm x 200mm x 60mm
7.90in x 7.90in x 2.40in
Rated Voltage 24/48VDC
Weight 1.03 kg
Frame Construction UL94V-0 PBT Plastic
Impeller Construction UL94V-0 PBT Plastic
Motor Type Brushless DC
Airflow Air exhaust over struts
Motor Protection Reverse polarity protection, Locked rotor protection
Storage Temp -40°C ~+70°C
Operating Temp -10°C ~+70°C
Insulation Class Class A

Available Options

Bearing Options Ball bearing
Connection Options Lead wires
Protection Options Conformal coating, Parylene coating
Additional Options Tachometer Output, Locked Rotor Alarm, PWM Speed Control

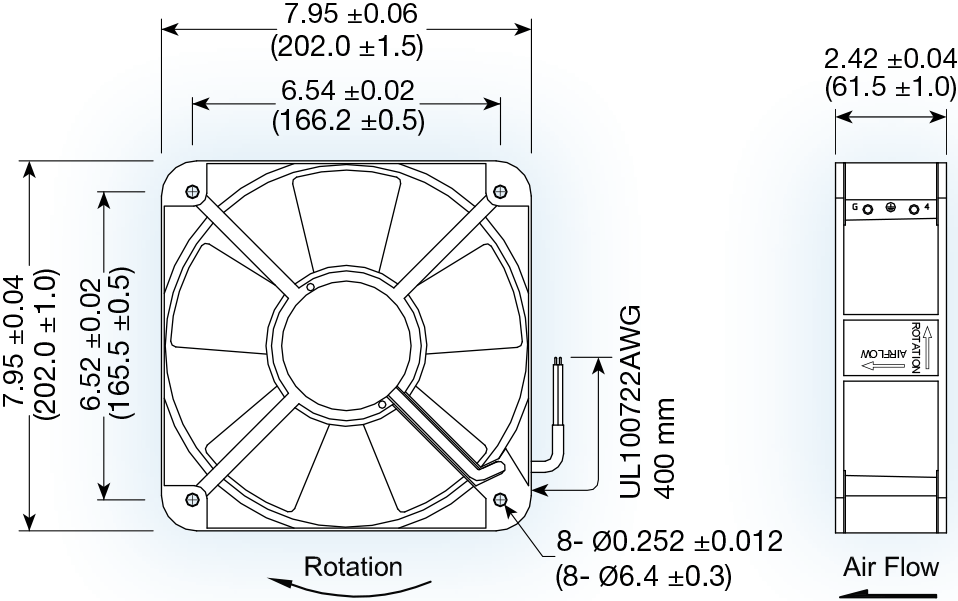

MH2060_drawing
STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) 0.2 0.4 0.6 0.8 1.0 1.2 0 100 200 300 400 500 600 700 L M H

Models

Model Number Rated Voltage Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V W A RPM m3/min CFM mm/H2O in/H2O dBA
MH2060L24 24VDC 24 1.00 2,000 10.74 379.27 86.97 0.35 53.9
MH2060L48 48VDC 24 0.50 2,000 10.74 379.27 86.97 0.35 53.9
MH2060M24 24VDC 36 1.50 2,500 13.41 473.59 136.82 0.55 60.6
MH2060M48 48VDC 38.4 0.80 2,500 13.41 473.59 136.82 0.55 60.6
MH2060H24 24VDC 60 2.50 3,000 16.14 569.95 192.98 0.78 65.7
MH2060H48 48VDC 57.6 1.20 3,000 16.14 569.95 192.98 0.78 65.7
